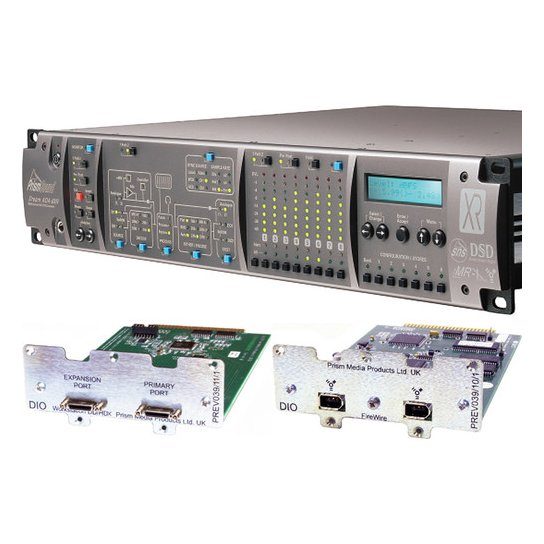

Prism Sound ADA-8XR Audio Interface with 8-Channel A/D-D/A & FireWire for Pro Tools HDX

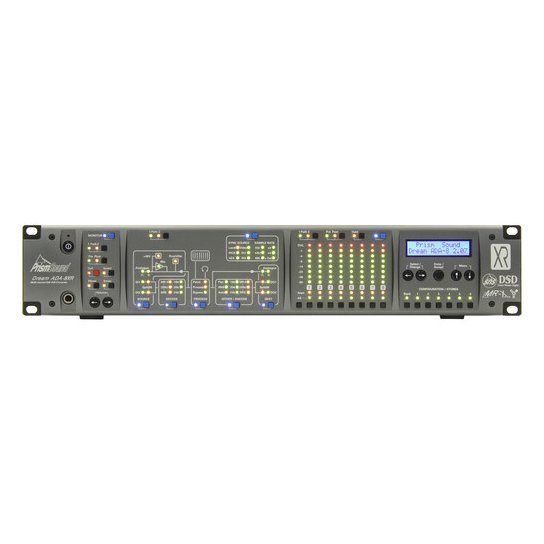

The Prism Sound ADA-8XR Frame is a rack-mountable 2 RU audio interface chassis designed to deliver versatile clocking and configurability for producers, musicians, and audio engineers in home, project, and commercial studios. Its modular design yields flexible I/O arrangements thanks to four I/O module slots—two analog and two digital. A variety of modules (available separately) can be installed for access to multichannel analog/digital inputs and outputs as well as Pro Tools or FireWire workstation connectivity.

The ADA-8XR Frame supports resolutions up to 24-bit/192 kHz, and can clock internally or to external AES3, AES11, word clock, or Pro Tools Loop Sync. The built-in Utility Module provides stereo analog RCA and digital BNC audio outputs, BNC word clock and XLR AES11 sync I/O, and a DB9 serial communications port. Additionally, the front panel has a 1/4″ stereo headphone output along with assignable 8-channel bargraph meters. An onboard display and comprehensive controls enable efficient adjustment of parameters, which can be quickly stored and recalled via factory and user presets. The ADA-8XR Frame comes with no I/O modules, ready for custom configurations.

The Prism Sound 8C-AD is an 8-channel A/D module offering uncompromising analog-to-digital conversion for producers, musicians, and audio engineers using a Prism Sound Dream ADA-8XR audio interface in a variety of studio environments. Exhibiting low noise, minimal distortion, and high dynamic range, it features eight balanced XLR 3-pin female inputs, which accept line-level signals and feed them to 24-bit/192 kHz A/D converters.

Input level and trim are adjustable per channel for precise calibration and gain optimization. Prism Sound’s Overkiller limiters are individually selectable for each of the eight inputs, allowing protection against clipping on a channel-by-channel basis. The 8C-AD easily installs into an analog I/O slot of a Dream ADA-8XR (available separately).

The Prism Sound 8C-DA is an 8-channel D/A module offering uncompromising digital-to-analog conversion for producers, musicians, and audio engineers using a Prism Sound Dream ADA-8XR audio interface in a variety of studio environments. Exhibiting low noise, minimal distortion, and high dynamic range, it features 24-bit/192 kHz D/A converters, which feed analog line level to eight balanced XLR 3-pin male outputs.

For precise calibration and gain optimization, each channel offers output level adjustments in 0.5 dBu increments and output trim tweaks in 0.05 dBu steps. The 8C-DA easily installs into an analog I/O slot of a Dream ADA-8XR (available separately).

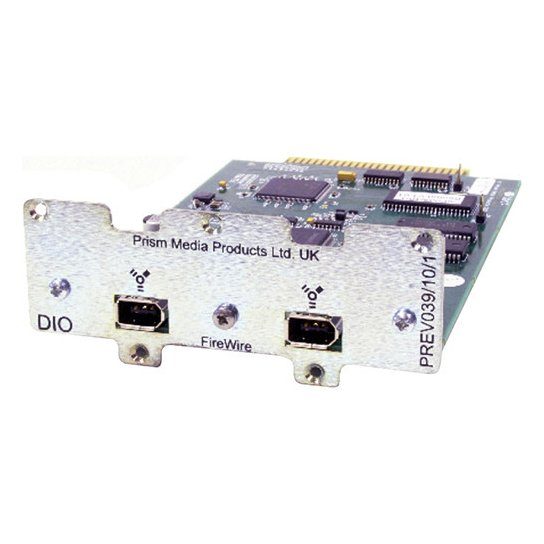

The Prism Sound 8C-FW is an 8-channel FireWire I/O module offering flexible digital input and output configurations for producers, musicians, and audio engineers using a Prism Sound Dream ADA-8XR audio interface in a variety of studio environments. With selectable configurations, it supports up to eight channels of I/O at up to 96 kHz or up to four channels of I/O at 176.4 kHz or 192 kHz. Two 6-pin FireWire 400 (1394a) ports enable proper connectivity with computers equipped with 4- or 6-pin FireWire 400. The 8C-FW easily installs into the upper or lower digital I/O slot of a Dream ADA-8XR (available separately) and is compatible with Mac OS X and Windows systems.

The Prism Sound 8C-PTHDX is a Pro Tools HDX I/O module offering flexible digital input and output configurations for producers, musicians, and audio engineers using a Prism Sound Dream ADA-8XR audio interface and Pro Tools HD software. It emulates one Avid HD I/O, and supports eight channels of I/O at up to 192 kHz or 16 channels in or out at up to 192 kHz. Two DigiLink Mini ports ensure compatible connectivity with Avid HDX and HD Native cards. The 8C-PTHDX easily installs into the upper or lower digital I/O slot of a Dream ADA-8XR (available separately).
